The steam engine which triggered the Industry Revolution and then Karl Benz conceived the
Internal Combustion Engine creating the automobile, finally Henry Ford invented Assembly Line
to make the car cheaper, everyone can afford it.















The boiler heat turned the water into the steam and then push the piston reciprocating moving.

The pistons turn the crankshaft and then drives the axle.


1907 White Steam Car.

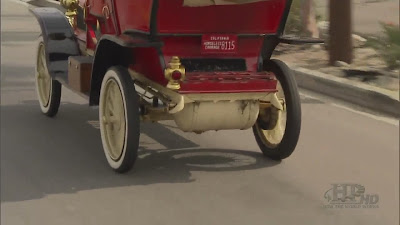

Condensed Car.
You don't see the steam come out of the car. Because the steam used by the engine going
back to the condenser which cooled the steam turned it into the water and used it over and
over again.




Running the steam train is the labor intensive job.


We can see the counterweight used to smooth the wheels.

The team perform the boiler cleaning procedure. They accumulate the pressure inside the boiler, because the sediment built up in the boiler, it must be removed.

Steam Crane

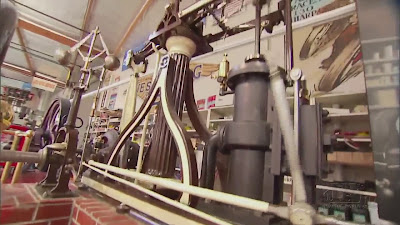

From this angle of view, we can see that the steam turned the flywheel.
Steam Boat.




The star in the center of the crankshaft looks like the communism.

Steam Whistle

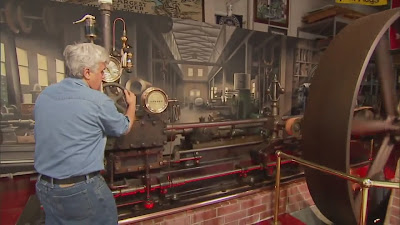

Stationary Steam Engine

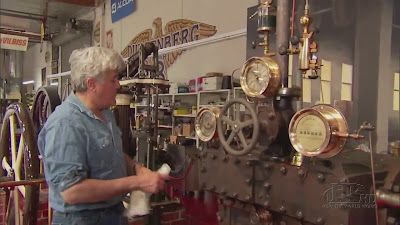

Centrifugal Governor. Using the centrifugal force to control the throttle keeping the engine
r.p.m constant.
Nuclear Plant.

Geothermal Electricity
Steam Cleaner.
Using the steam to clean the dirt and grease from the heavy equipment.
Water : Steam = 85% : 15% provided the best cleaning power. The tremendous expansion
steam accelerates the water drops, so they bombard the surface of the machine.

Water Tube Boiler.
The steam unit has the diesel tank supplies the fuel for the burner.
If you can use the hot air to boil the water, reverse it, you can use the Refrigerant to cool
the air called Air-Conditioner.
The upper portion is called the Water Tube Boiler, the hot air produced by the burner below
circulated around two coils water filled steel pipes, up to the center down between the coils,
then out to the outside.

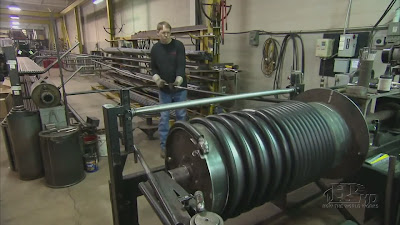

The coil.
When the water passes through the pipe, it would be heated to the steam.




Steam Generator.



Fire Tube Boiler
The heat from the burner traveled through the tubes and boiled the water inside the tank.

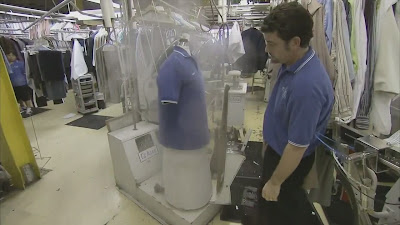

The steam can be used to flatten the cloths.







Distill the water.

After distilling, the sediment was deposited in the bottom of the kettle.

The ozone gas cleans the water.
